Nail Diameter：3.0-6.0 mm
Nail Length：50-180mm
Out put Speed：150 pcs/min max
Motor Power：5.5 kw
Size：2750*1550*1500
Weight：2600 kgs

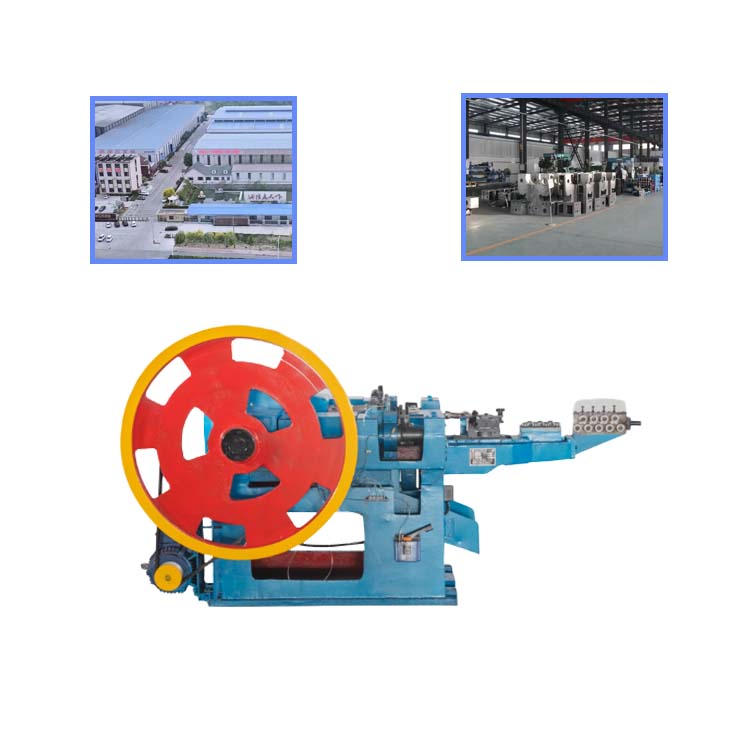

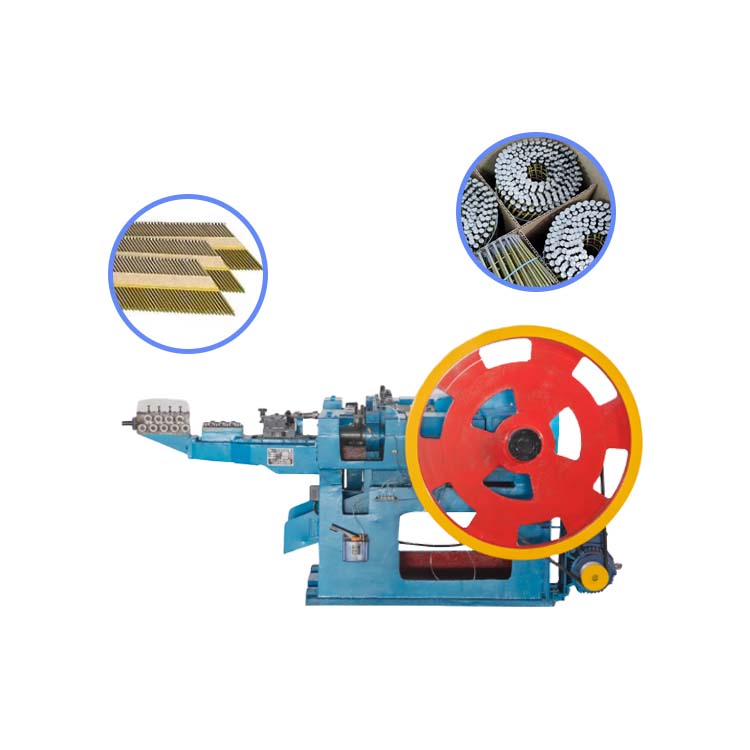

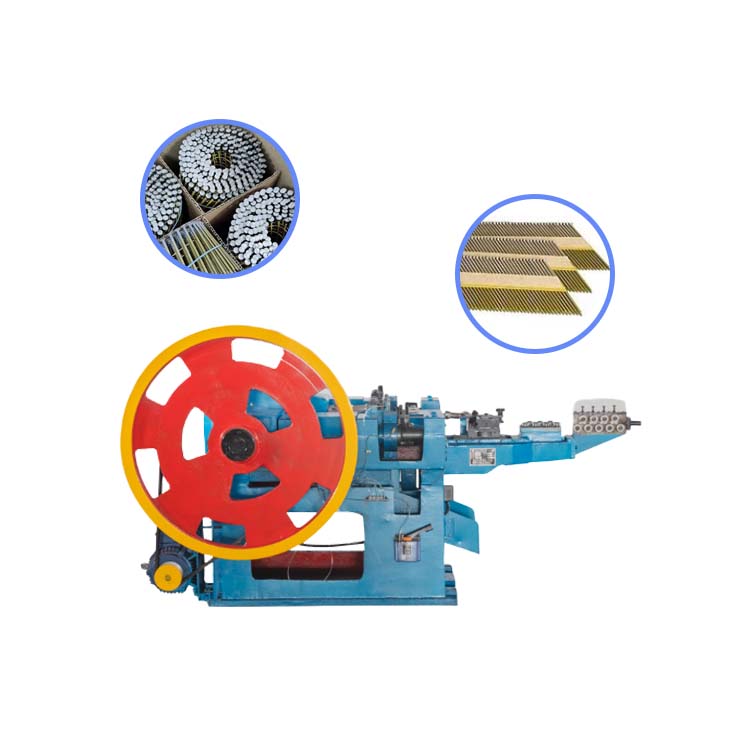

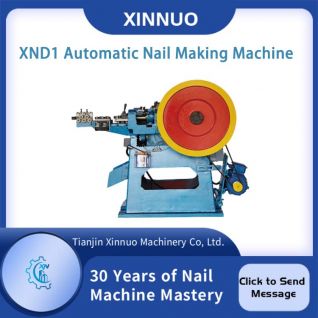

The automatic nail making machine is a high-efficiency and reliable industrial device designed with a scientifically optimized structure. It offers fast production speeds, low noise levels, and minimal vibration, making it ideal for both small-scale workshops and large-scale industrial use. This machine can produce a wide range of nails, including wood nails, headless nails, U-shaped nails, double-cap nails, corrugated nails, and felt nails. It also supports the production of customized and special-shaped nails through flexible adjustment.
The machine is user-friendly and easy to operate. Workers can quickly learn to control it, and key parameters like nail length, thickness, and head size can be adjusted to meet different design and production requirements. Its stable operation ensures consistent quality and precision throughout the production process.
| ltem | Specification |

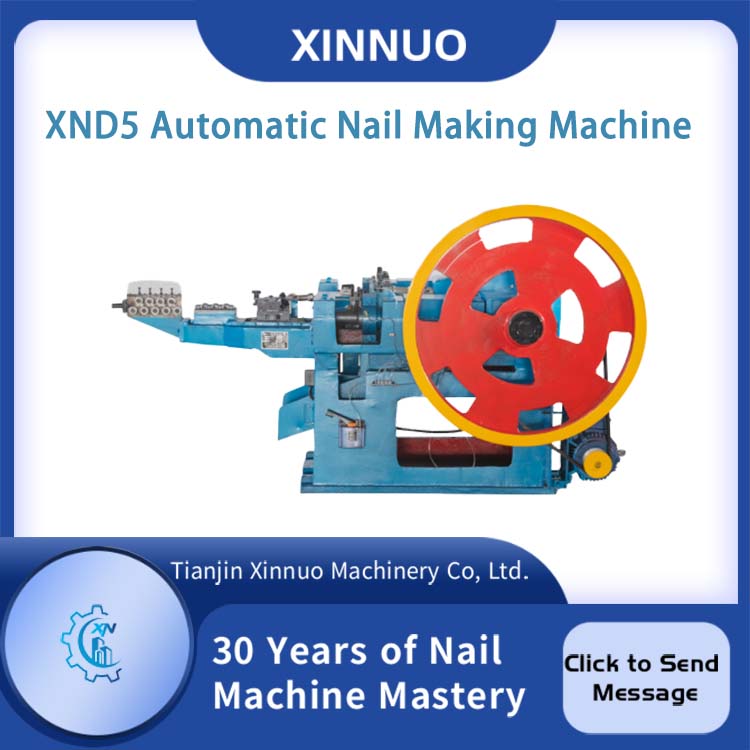

| Product Name | XND-5 automatic nail making machine |
| Nail Diameter | 3.0-6.0 mm |
| Nail Length | 50-180mm |
| Out put Speed | 150 pcs/min max |
| Motor Power | 5.5 kw |
| Size | 2750*1550*1500 |
| Weight | 2600 kgs |
| Key word | nail making machine sale, nail making machine hs code, construction nailmaking machine |
Working Principle of the Iron Nail Making Machine
The Z94 nail making machine adopts mature Taiwanese technology and operates automatically. The process involves several steps: wire straightening, feeding, cutting the wire to form a nail tip, and stamping to form the nail head. It runs via a motor and is controlled with a simple on/off switch. Unlike complex systems, it requires no frequency converter or control cabinet. Depending on wire diameter, one coil can run for 4 to 8 hours without interruption.
Nail Manufacturing Process
Wire Drawing: Large-diameter steel rods (6.5mm or 5.5mm) are drawn down to smaller diameters like 4.5mm or 3.4mm.
Nail Forming: The drawn wire is fed into the nail making machine to form nails.
Polishing: Nails are polished using a drum filled with sawdust to enhance smoothness and shine.
Packaging: Finished nails are sorted and packed into bags or cartons.
Model Selection: Machine models are selected based on the desired nail length and diameter.
XND Series Nail Machines

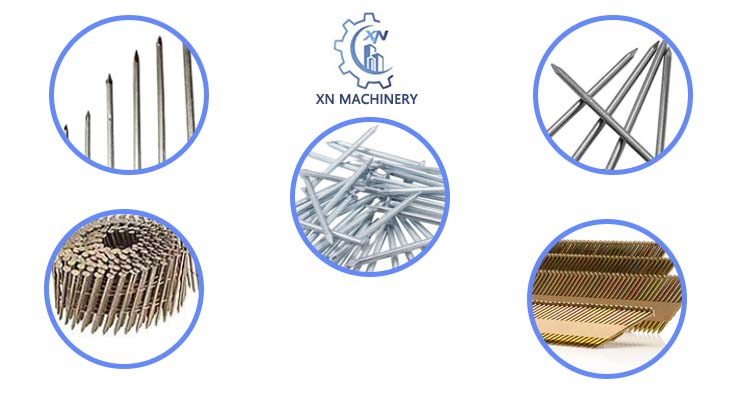

Our XND series nail making machines are known for their durability, high performance, and quiet operation. While designed for standard steel nails, they can be customized to manufacture:
Double-cap nails
Felt nails
Corrugated nails
U-shaped nails
Gun nails
Injecting nails
V-type nails
These nails are widely used in construction, woodworking, packaging, and manufacturing industries.
Why Choose Us
As a leading wire nail making machine manufacturer in China, Tianjin Xinnuo Machinery Co., Ltd. offers advanced equipment at competitive prices. Our product line includes machines for concrete nails, roofing nails, screw nails, and more. With years of industry experience and strong technical support, we’ve become a trusted partner to customers worldwide.
We focus on innovation, technology upgrades, and rigorous quality control to ensure that each machine meets global standards for safety and performance. Our factory-supplied machines are tested before delivery to guarantee stable operation, long service life, and ease of use.
Whether you're starting a new nail production business or expanding an existing one, our automatic nail making machines provide the reliability, flexibility, and efficiency needed for success. Backed by professional service and technical expertise, Xinnuo Machinery is committed to helping customers achieve high productivity and long-term growth in the nail manufacturing industry.
